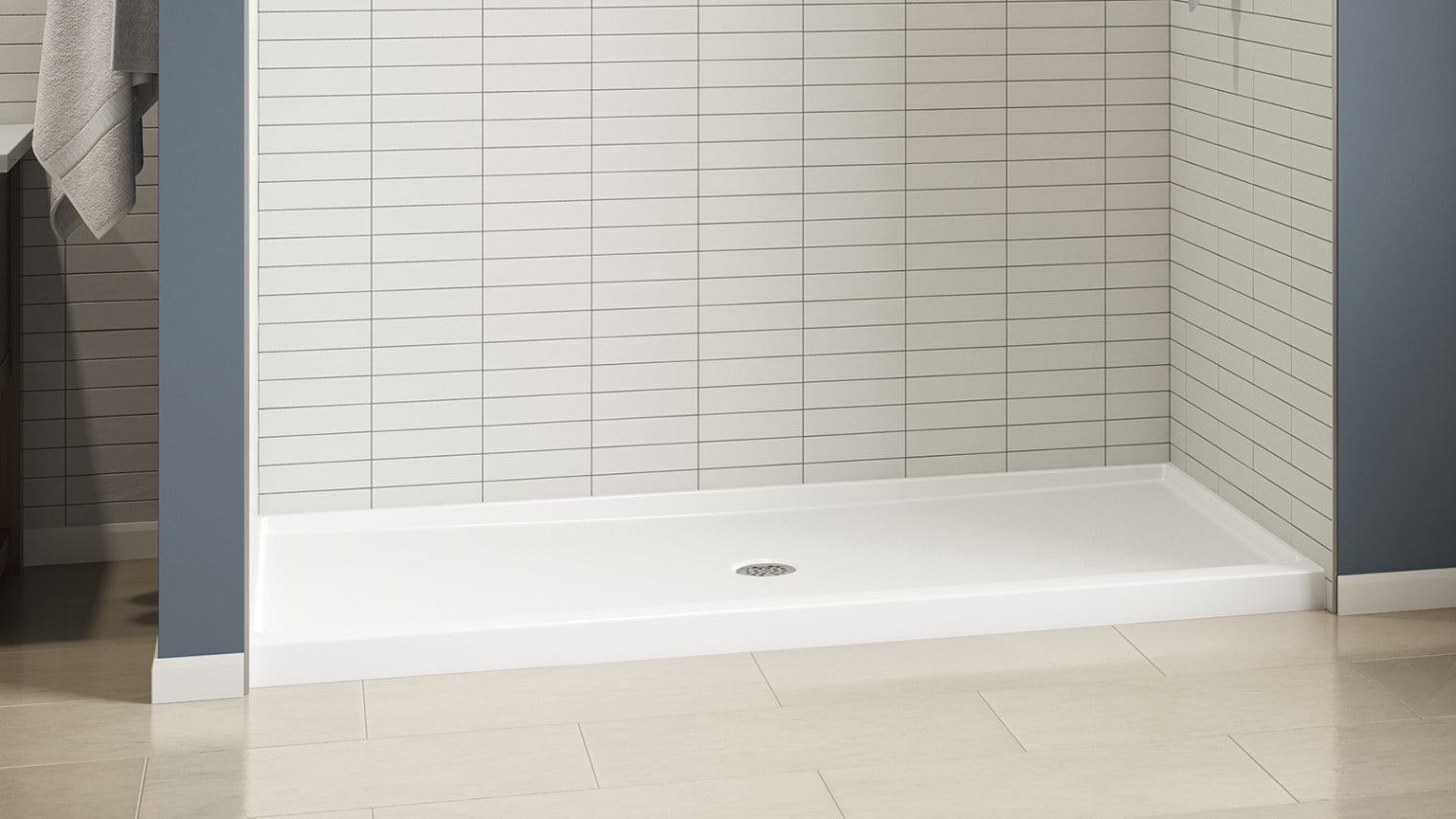

Classic white prefab shower base with center drain in a tiled bathroom.

Prefab Shower Base Drainage Guide: Prevent Leaks and Odors Effectively

Posted by leavitt welch on

Table of Contents

Introduction



When most people decorate their bathrooms, their eyes are fixed on those shiny hardware pieces, mirror tiles and highly designed glass doors. Few people really care: How exactly is the drainage system under prefab shower base doing? After all, it was hidden beneath the floor, making no sound and not showing its face - until one day, a circle of water stains seeped from the ceiling downstairs, and your "American minimalist style" was officially brought down from its pedestal.



According to the industry after-sales statistics from 2022 to 2024, approximately 31% of the complaints about water leakage and odor originated from the improper design or installation of the prefab shower base drainage system. Compared with appearance or price, the invisible "hidden danger area" of drainage is the core that truly determines the user experience. And once these problems occur, not only will the repair costs be high, but they may also directly affect the structure and air quality of the home.



This article will deeply analyze the key details in the prefab shower base drainage system from the perspectives of leakage, odor, noise, aesthetics and maintainability - allowing you to avoid detours when purchasing and stay away from potential problems during use.



Modern prefab shower base with linear drain in a raised installation.


1. What Is a Prefab Shower Base?



Prefab shower base, namely the prefabricated shower base, is usually made of fiberglass, acrylic or composite resin. It is widely used in the decoration of new houses and the renovation of old bathrooms. Due to its advantages such as easy installation, anti-slip safety and low maintenance cost, it has become a popular choice for middle and high-end families.



Compared with the traditional tiled floor laying, prefab shower base can save 3 to 5 days of construction period, effectively control the drainage Angle and reduce structural errors. However, due to its "prefabrication", many users mistakenly believe that it is foolproof and overlook the complexity and risks of the drainage system itself.



In fact, the difference in installation quality directly determines whether after you use this prefab shower base for five years, it will be "as clean as new" or "with water seepage at the bottom and an unpleasant smell all over the room".



2. Water Leakage: The Hidden Cost



According to the 2023 data from the Insurance Information Institute, the average loss caused by a household flood exceeds $11,000, and bathroom leakage is one of the main causes. When installing the prefab shower base, if the drainage structure is not firmly connected, it is very likely to cause concealed seepage, damaging the floor, floor slab and even the ceiling of the neighbor's house.



Common leakage problems include:



  • The flange of the drainage outlet is not properly sealed and the interface is loose
  • The base is not fully adhered to the ground, resulting in drainage backflow or cracked seams
  • The ground drain outlet does not match the position of the prefab shower base drain outlet, and the forced connection causes structural stress



Response plan:



  • Use self-leveling compound before installation to ensure fit
  • Select the prefab shower base product with rubber flange rings and adjustable drainage interfaces
  • When misalignment occurs, use an eccentric adapter and do not force the connection



Only when the underlying structure fits perfectly can "zero leakage" not just be a slogan.



3. Odors: Why Drainage Matters



In a 2022 indoor air quality study by the EPA, over 60% of users indicated that "bathroom odors seriously affect the quality of life." Prefab shower base itself does not produce unpleasant odors. However, if the connected drainage structure is poorly designed, it will soon become the source of the stench.



The causes of unpleasant odors include:



  • The drainage trap (P-trap) has dried up and cannot be water-sealed
  • Insufficient drainage slope leads to the retention and corruption of sewage
  • The AAV (Air Admittance Valve) is missing and air flows back into the room



Optimization suggestions:



  • Select the prefab shower base with an integrated slope design to enhance the self-cleaning property of drainage
  • Bathrooms that have been vacant for a long time need to be replenished regularly to maintain the water seal
  • When ventilation is poor, install AAV to effectively prevent the backflow of odors



A prefab shower base without any unpleasant smell is worthy of a clean and comfortable high-end bathroom space.



4. Drainage Noise and User Comfort



No matter how high-end a bathroom looks, as soon as you turn on the boiling water, the sound of the flowing water is as loud as that of an old boiler, and the experience instantly "drops in gear". Many low-end prefab shower bases generate strong resonance during the drainage process. Especially the hollow design at the bottom amplifies the drainage sound.



Noise reduction techniques:



  • Choose prefab shower bases with foam filling at the bottom (such as brands like Maax and Swan).
  • Add a rubber shock-absorbing pad layer before installation to enhance the sound absorption performance
  • Replace the drainage cover plate with one made of ABS material or a composite noise reduction structure



Quietness is a kind of "hidden luxury" pursued by middle and high-end families, and choosing the right prefab shower base is the first step to achieving it.



Sleek low-profile prefab shower base in a frameless glass shower.


5. Installation Risks on Upper Floors



When using prefab shower base in the second floor or attic area, both the risk of leakage and the cost of maintenance will double. We once encountered a customer who removed the base without reserving a maintenance opening, and the maintenance cost was as high as $3,200.



Suggested plan:



  • Install the shower pan liner to form the secondary waterproof layer
  • A detachable inspection plate is set up to facilitate future drainage maintenance
  • Choose the prefab shower base product with a structure that supports quick disassembly to leave room for future maintenance



When installing prefab shower base, not only the immediate effect should be considered, but also the convenience of maintenance after five years.



6. Drainage Aesthetics in Modern Bathrooms



In high-end bathrooms, the "presence" of the drain outlet is also one of the scoring criteria. A thick and mismatched drainage cover plate is enough to ruin the minimalist beauty.



The contemporary prefab shower base brand has launched a variety of designs with a high level of appearance, including:



  • Linear drain: Linear drainage, parallel to the wall surface, is visually more "invisible".
  • The cover plate of the same material and color series is integrated with the base
  • The drainage structure without exposed screws has a pure and minimalist surface



Houzz's "2023 American Bathroom Trends Report" indicates that 79% of high-income consumers will abandon purchasing a product due to "unattractive drainage design". Beauty and practicality have never been opposites, especially in the selection of prefab shower bases.



Conclusion



Prefab shower base is a representative of modern efficient decoration solutions, but its true value is by no means limited to quick installation and low cost. Only when the drainage system is also professional, silent, odorless, leak-proof and maintainable can it be called a high-quality product.



If you are planning to renovate your bathroom or renovate your new house, be sure to take the drainage system as a core consideration when purchasing a prefab shower base. Because once the installation is completed, the cost of rework will far exceed the initial investment.



Explore our prefab shower base series customized for mid-to-high-end families right now - equipped with a hidden drainage system, silent leak-proof design and maintainable structure, making your bathroom not only look comfortable, but also use with peace of mind and for a long time.



FAQ



Q1: Is Prefab shower base suitable for barrier-free bathroom design?



Yes, choose the prefab shower base with built-in slope or ultra-thin edge design, which can seamlessly connect with wheelchair or walk-in transition areas and complies with ADA standards.



Q2: What should I do if I find that the position of the drain outlet doesn't match during installation?



It can be adjusted by using an eccentric drainage adapter or a flexible flange ring. Most high-end prefab shower base brands allow a certain degree of drainage interface offset range.



Q3: Can the glass partition be drilled and installed on the Prefab shower base?



Sure, but it is recommended to use a dedicated drill bit and avoid the main drainage channel. Brands like DreamLine offer reserved hole models that can safely fix glass parts.



Q4: Will Prefab shower base collapse or deform after long-term use?



High-quality products won't. It is recommended to choose the prefab shower base with a firm bottom structure filling and a complete support surface to avoid structural fatigue caused by local suspended areas.



Q5: How often does the drainage system need to be inspected?



It is recommended to check the sealing condition of the drain outlet every 6 to 12 months to keep the P-trap water seal from drying up, which is particularly important for bathrooms that have been vacant for a long time.
