Will a 24x72 Frameless Pivot Shower Door Fit a 24 1/4" Opening?

Posted by ZhangMillie on

Table of Contents
  1. What does “24 x 72” really mean?
  2. Will a 24 1/4" opening work?
  3. How should I prep for installation?
  4. Frameless or semi-frameless: which is better?
  5. Why go with Ace Decor?
  6. Got more questions?
  7. So, will it fit?
  8. Want to explore more?



Selecting the right shower door can be a bit tricky — especially when your shower opening measurements are so close to the product dimensions. As specialists in bathroom furniture and fixtures here at Ace Decor, one of the most common questions we get is:

"My opening is 24 1/4" wide (wall to wall). Will your 24 x 72 pivot frameless shower door work? I couldn't tell if the glass is exactly 24" wide, which would require a larger opening.”

It would be hard to answer this question without going into some detail because a minor mismatching between the two could impact actual installation, functioning of the door and even long-standing safety.

In this blog post, we are going to go step-by-step to explain the sizing of pivot frameless doors, important tolerances, and how Ace Decor's product is designed around these real-world applications. We will also include a decision-making chart and some concrete advice to help you feel confident that you are making the right call.



Shower Door Dimensions Explained: What Does '24 x 72' Mean?

Before we assess your 24 1/4” opening, allow us to break down the “24 x 72” size designation:

Dimension Meaning Key Consideration
24" Width of the glass panel (nominal) Does not include hinges or hardware
72" Height from top to bottom Generally contains total glass height, not the added-up height with hardware

Also most frameless shower doors are, they specify their glass panel size rather than the total required opening. The installed door width, however, depends on a couple of very important factors:

  • Thickness of the wall-mount hinges or pivot bracket
  • Any clearance required for the door swing or sealing strips
  • Variable walls (out-of-plumb walls, wonky tile, etc.)

With frameless, pivot construction, Ace Decor 24" x 72" shower door fits finished opening width from 24" to 24 3/8". So your 24 1/4″ opening is within range, let's see how that actually works in practice.

A modern frameless pivot shower door with matte black hardware, set in a bright, minimalist bathroom with subway tiles and marble accents. | ACE DECOR

24x72 Frameless Pivot Shower Door

• 180° easy swing
• 6mm safety glass
• Magnetic seal
• Reversible install



Key Measurement Considerations for a 24 1/4" Opening

A diagram showing how a 24" frameless shower door fits into a 24 1/4" wall-to-wall opening with hinge allowance. | ACE DECOR

Now, let's look at this clearly in a table:

Measurement Factor Value Notes
Your Opening Width 24 1/4" (24.25") Measured wall to wall
Door Glass Width 24" Measured edge to edge
Hinge Allowance ~1/8" to 3/8" Includes mounting clearance
Recommended Opening Range 24" to 24 3/8" Ace Decor's design spec

Result: Yes, It Will Fit

Your opening of 24 1/4" falls within our recommended installation tolerance. Our frameless 24” glass panel with Ace Decor's low-profile hinges will fit into gaps between 24" and 24 3/8" if the walls are finished and reasonably plumb.



Installation Tips for a 24 1/4” Opening

A person using a level and tape measure to check wall plumb and width for shower door installation. | ACE DECOR

While the fit sounds good on paper, we recommend following these precautions before ordering and installing:

1. Check Wall Plumbness

Check that your shower walls are plumb with a level. A bow in the wall of 1/8” would affect installation.

2. Ensure Finished Opening

The tile work must be done before measuring. Measurements should not be based on rough-in framing.

3. Review Hinge Placement

Our wall mounted pivot hinges are adjustable, but only a small amount. If the walls are not plumb, we recommend using shims or filler strips.

4. Account for Out-Swing

Frameless pivot doors mostly swing to the outside. Ensure that there's ample clearance outside the shower for the door to open freely.



Frameless vs Semi-Frameless: Which Door Best Works in Tight Openings?

Feature Frameless (Ace Decor) Semi-Frameless
Appearance Clean, minimal, modern Some visible metal framing
Space Requirement Lower Slightly wider
Adjustability Moderate (with correct hinge choice) Higher (due to frame channels)
Price Moderate to Premium Budget to Moderate

With only 24 1/4” of available space, going frameless (as with Ace Decor's model) is the best bet since semi-frameless models may need an additional 1/2" to 1" of room for the metal framing.

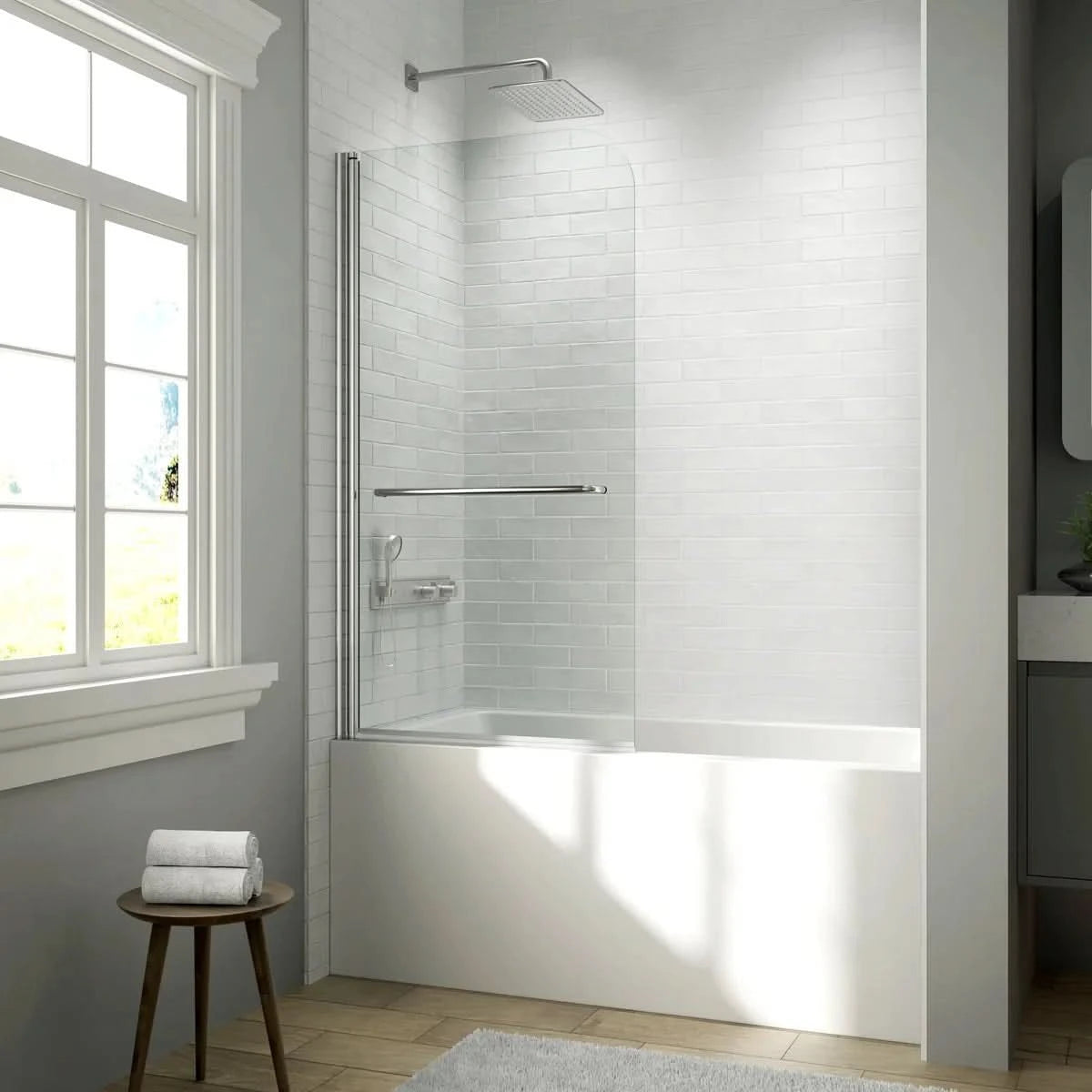

A sleek frameless tub shower door with a chrome towel bar, set against clean white subway tiles for a modern bath look. | ACE DECOR

Pivot Frameless Tub Shower Door

• 34"W x 58"H for small spaces
• 6mm tempered safety glass
• Chrome or matte black finish
• Reversible left/right install

A stylish semi-frameless shower door with matte black accents, adding a modern edge to a clean, spa-like bathroom. | ACE DECOR

Semi-Frameless Bi-Fold Shower Door

• Up to 29 7/16" wide opening
• 4 adjustable width options
• ANSI-tempered safety glass
• No bulky tracks or frames



Why Choose Ace Decor?

We know that each quarter-inch is precious for custom bathrooms. That is why we have designed our frameless pivot doors to:

  • Slim space saving without sacrificing function
  • Use ultra-thin, sturdy safety gear
  • Institution that has systems of adjustable hinges
  • Ship with easy to setup instructions and customer support

We are not simply a product supplier, but your bathroom furniture partner. Whether you're planning a slick renovation or sprucing up a small shower alcove, we can help you make decisions with confidence.



Frequently Asked Questions

1. The glass is 24" wide — is that right?

Yes. The glass panel are cutted precision and made out of 24" wide. Intended for openings measuring between 24" and 24 3/8" (when fitted with correctly mounted hinges)

2. What if my opening is slightly less than 24"?

If your space is 23 7/8" or smaller, this door won't fit without custom work. We can offer custom sizing, reach out to Ace Decor.

3. Can I install this door myself?

If you're comfortable with precise measurements and drilling into tile, you can install it yourself. But for something as tight as yours, getting a professional is the way to go.

4. Is the glass tempered?

Absolutely. Each Ace Decor stationary and sliding shower doors are made of certified tempered safety glass, with superior impact resistance and durability as well as increased strength.



Final Verdict: Will It Fit?

Factor Answer
Opening Width: 24 1/4" Fits within range
Door Glass Width: 24" Standard size
Hinge Clearance: Up to 3/8" Covered
Ace Decor Fit Range: 24" – 24 3/8" Confirmed

Yes – Ace Decor's 24x72 Frameless Pivot Shower Door will fit your 24 1/4" opening.
