48" x 74" Brushed Gold Frameless Double Sliding Shower Door with Soft-Close - Leak-Proof, Easy-Clean

SKU ACE-SD2712D-4874-BG

$619.99 $699.99 🔥 Save

Color (Brushed Gold)

Size (48 x 74)

Glass Thickness 5/16"
Adding to Cart Added to Cart
  • Frameless true 48 shower door design — makes space feel airy
  • Walk-in width 16” to 29” — super easy in and out
  • Walk-in height: 68-3/16" — no ducking required
  • Nano coated glass = less time spent cleaning
  • Shut close with little noise = less early morning clunking

Direct from the Factory – No Middleman, No Markup

7-Day Price Protection – Claim the difference if the price drops

Installation Instructions

Installation Instructions Icon Installation Guide.pdf
Specification 48" x 74" Model 60" x 74" Model
Fits Openings 44" – 48" 56" – 60"
Walk-in Width 18 3/4" – 22 3/4" 25" – 29"
Walk-in Height 68 3/16" 68 3/16"

Bold. Quiet. Secure. Great quality and Barn Style Shower Door Just Like it Should Be.

Choose the ACE-SD2712D-4874-BG barn style shower door for flawless glide, sleek gold elegance, and worry-free protection. From install to everyday use — it's built smarter.

Order yours now. Brushed Gold, Barn-Style, and well-constructed.


1. GLASS SPECIFICATIONS

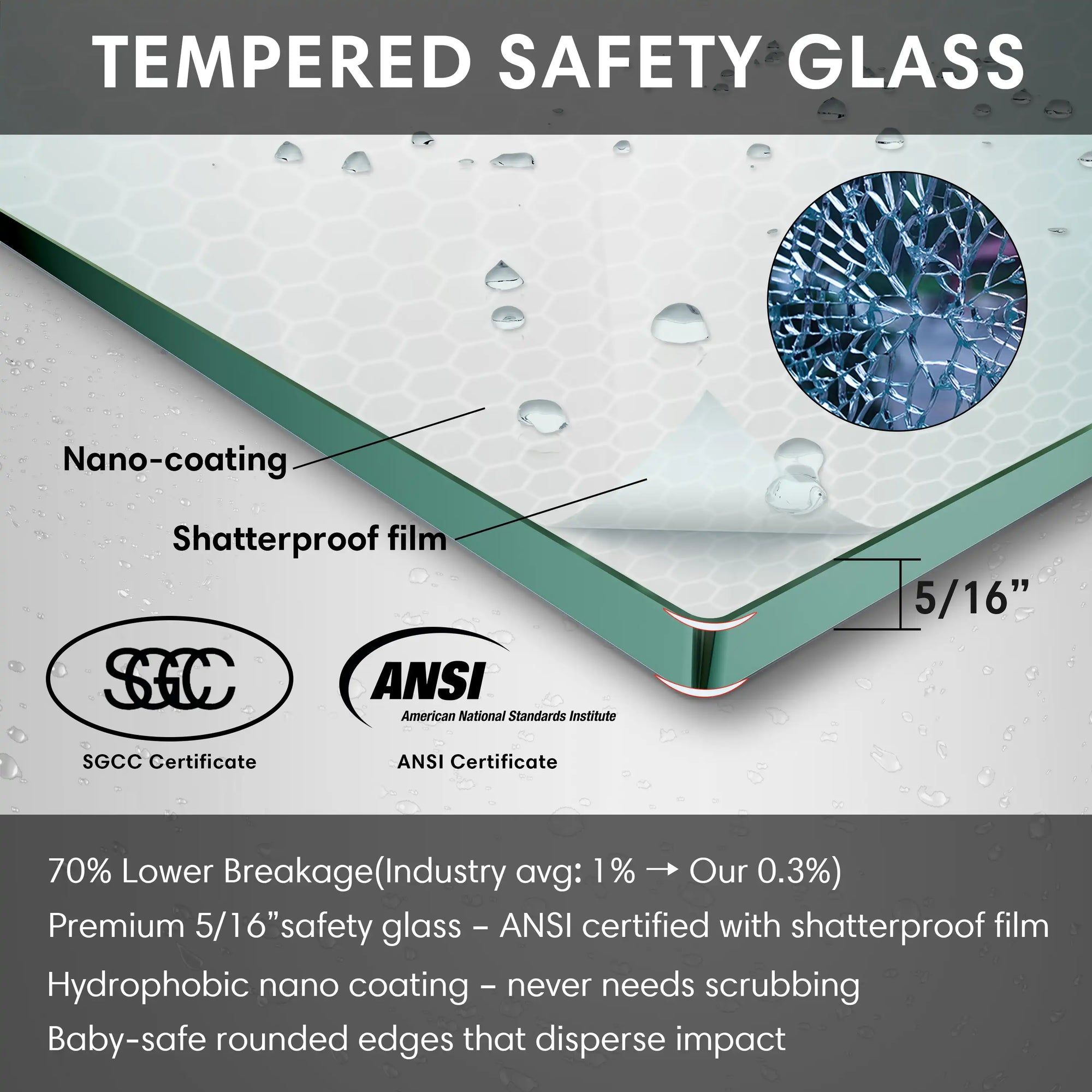

  • ANSI certified 8mm (5/16") thick tempered glass
  • Electrostatic adhesive on back for safety film, won't shatter into sharp shards if broken
  • Nano waterproof coating for low-maintenance cleaning
  • Smooth edge polishing (chamfered) for security and to reduce stress
  • Precision CNC machining ensures accurate holes and stable installation

2. STRUCTURE & HARDWARE

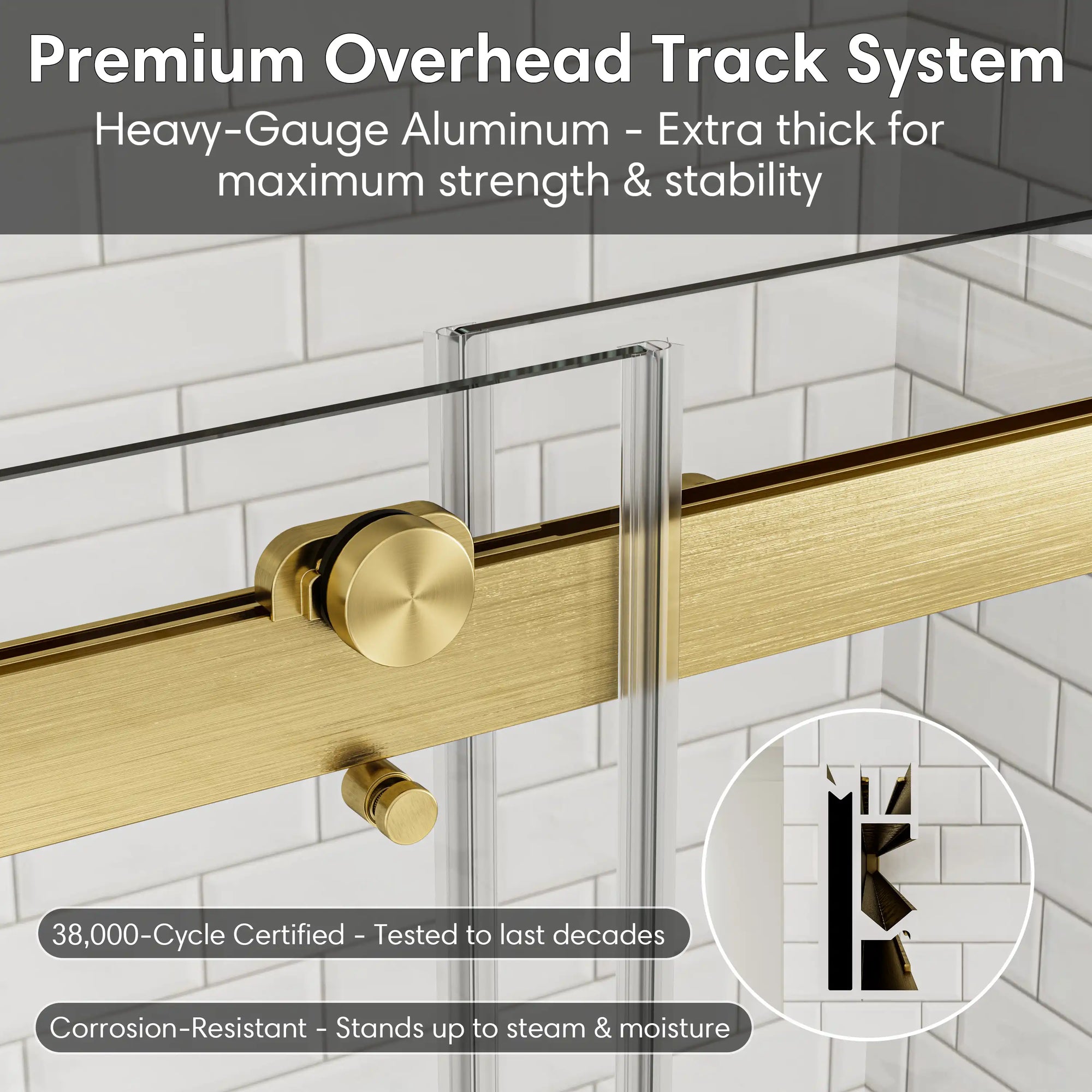

  • Heavy-duty extruded aluminum frame provides extra-thick and strong full glass door weight and functionality.
  • Rust-proof hardware is constructed from stainless steel

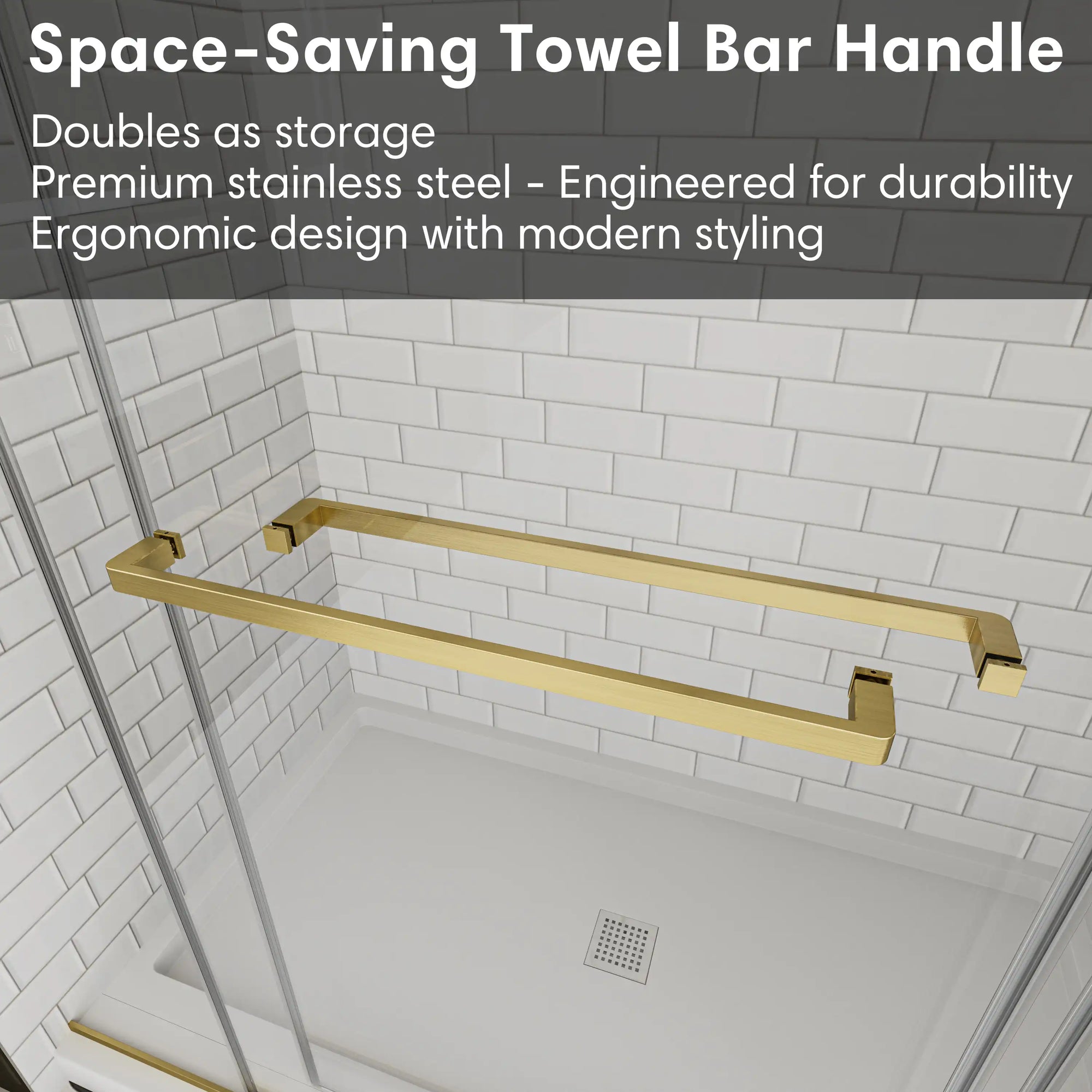

  • Brushed gold twin towel bar handle doubles as a door grip and towel rail
  • Top rail is power coated to ensure structural integrity and ease of gliding

3. SLIDING & BUFFER SYSTEM

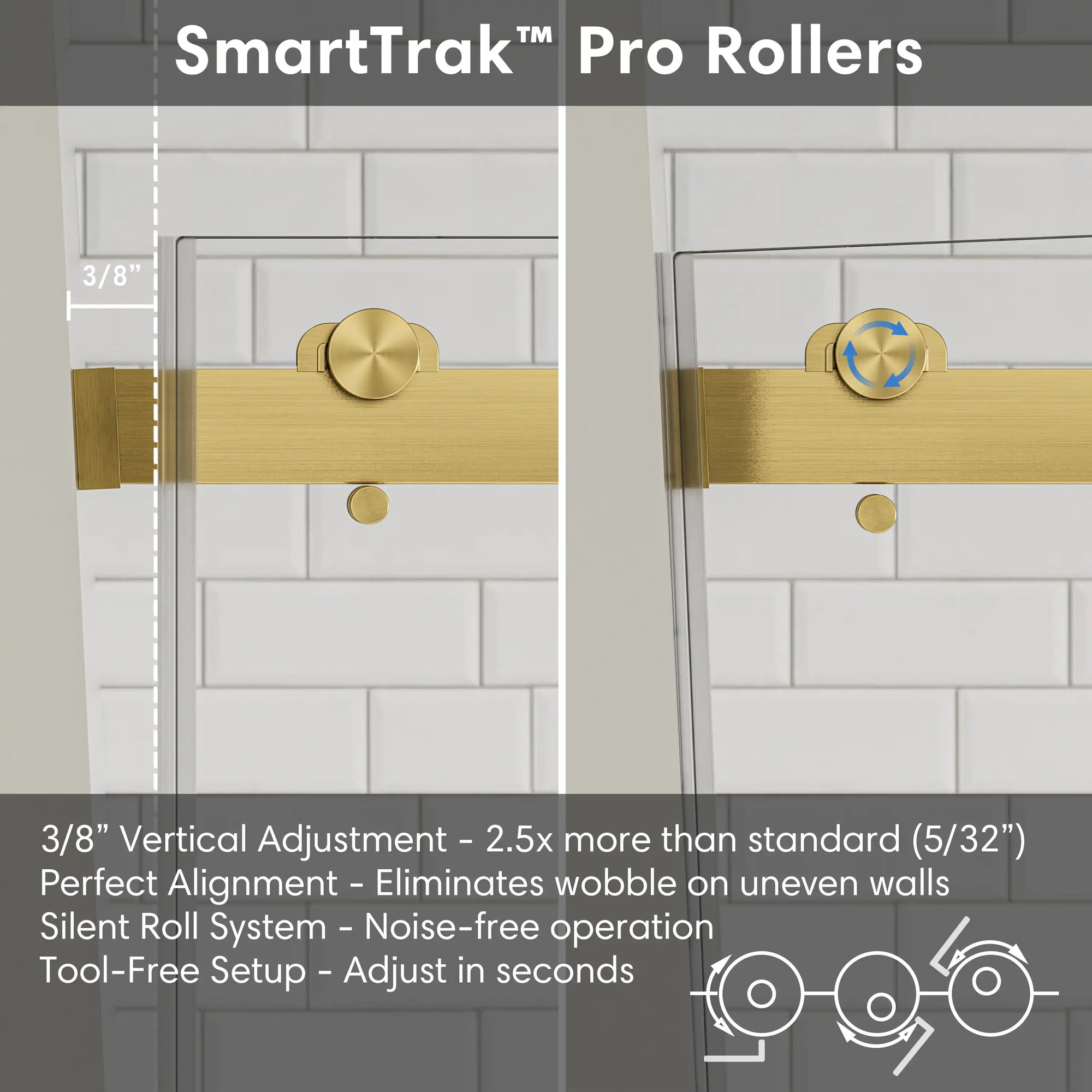

  • 4-roller design: 2 exposed + 2 internal rollers for bidirectional glide

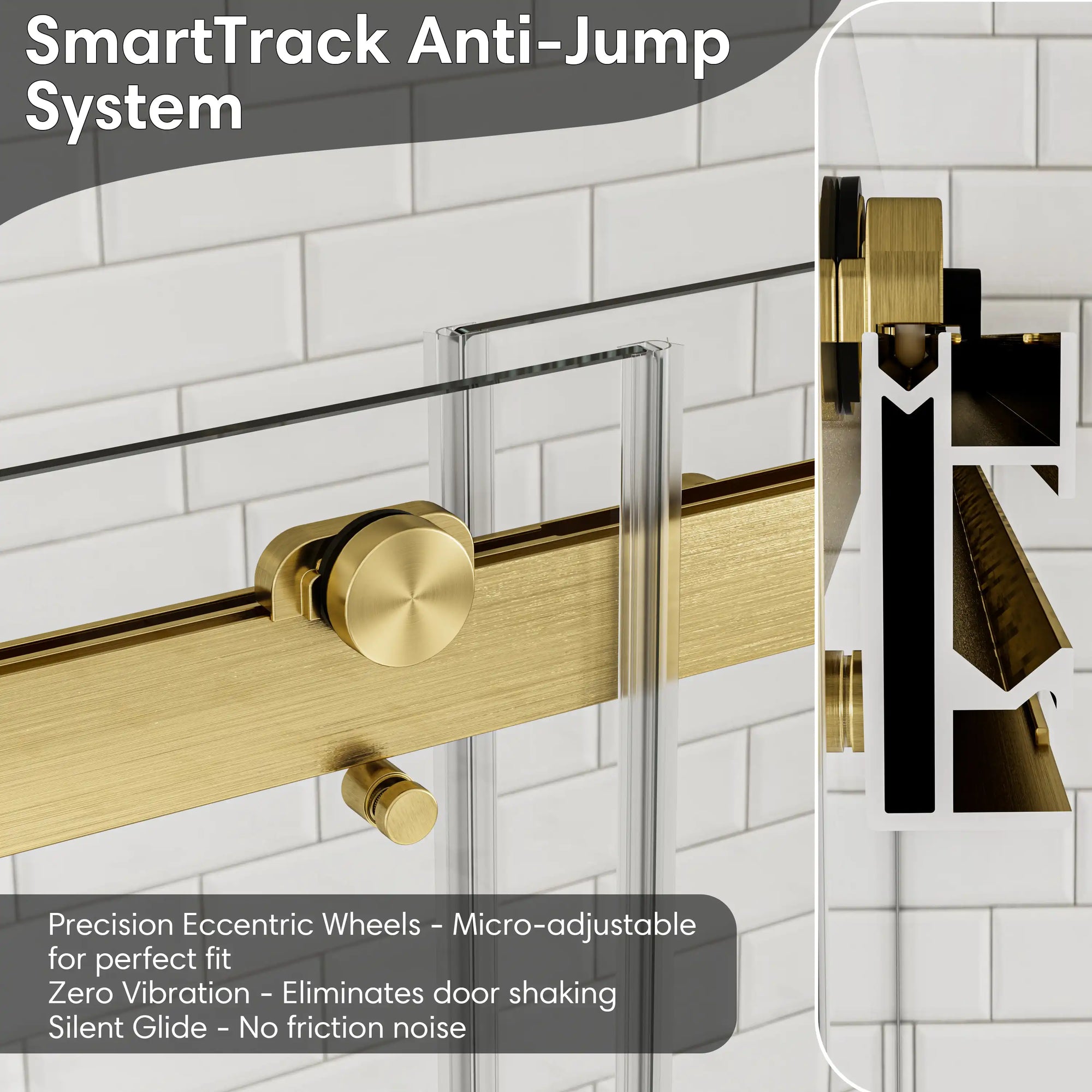

  • Anti-jump eccentric wheel system keeps door locked on track
  • Soft-close buffer tested over 10,000 times; lasts 3+ years longer than competitors
  • 10mm adjustable outer rollers for wall distortion compensation

4. INSTALLATION FLEXIBILITY

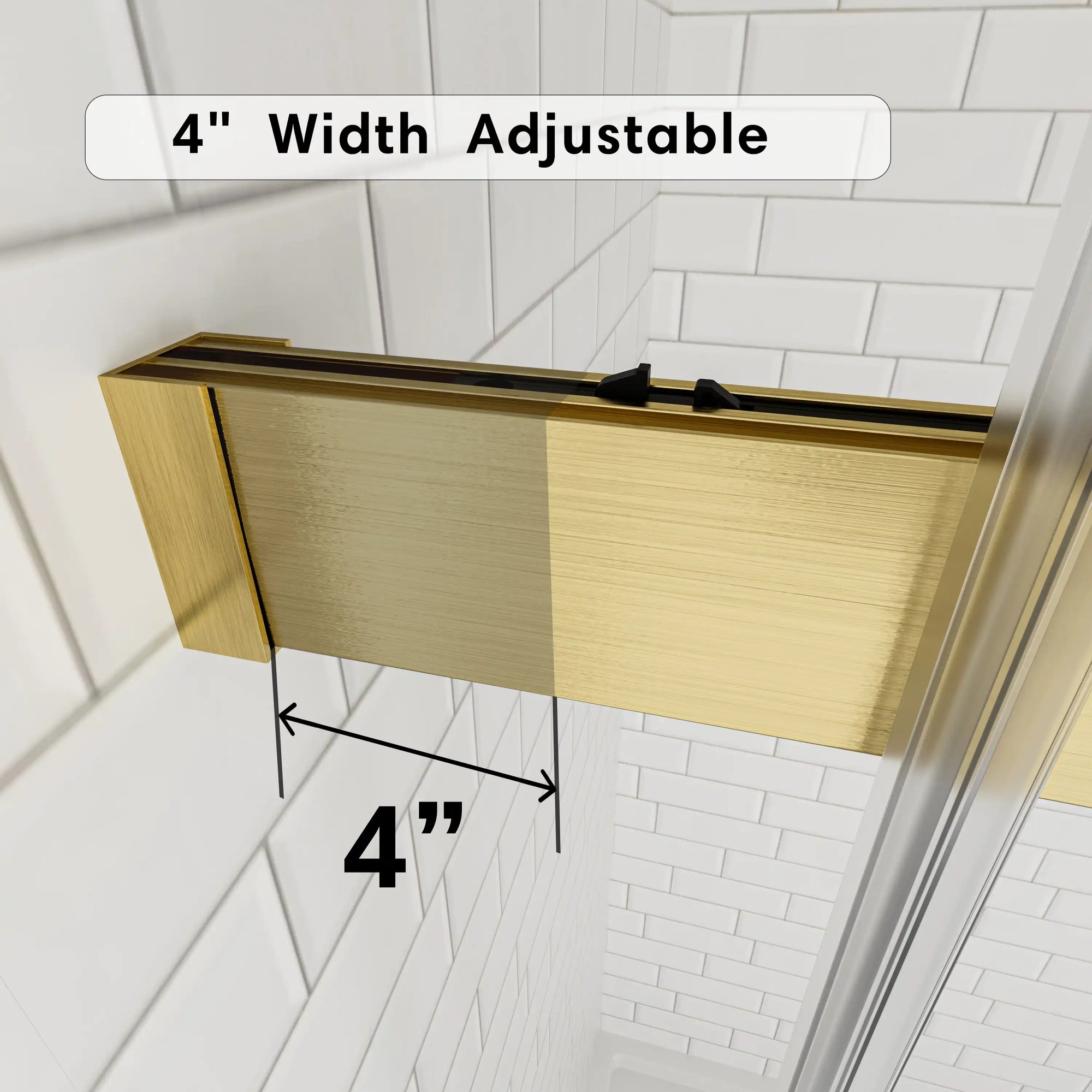

  • Width adjustment: 4 inches
  • Height vertical tolerance: 3/8" (10mm)
  • Aluminum wall cap compensates up to 1/4" wall unevenness
  • Comes with full kit: anchors, rails, caps, bumpers, side trims
  • DIY-ready with visual instructions and engineer support on demand
  • Top rail design resists shifting during install

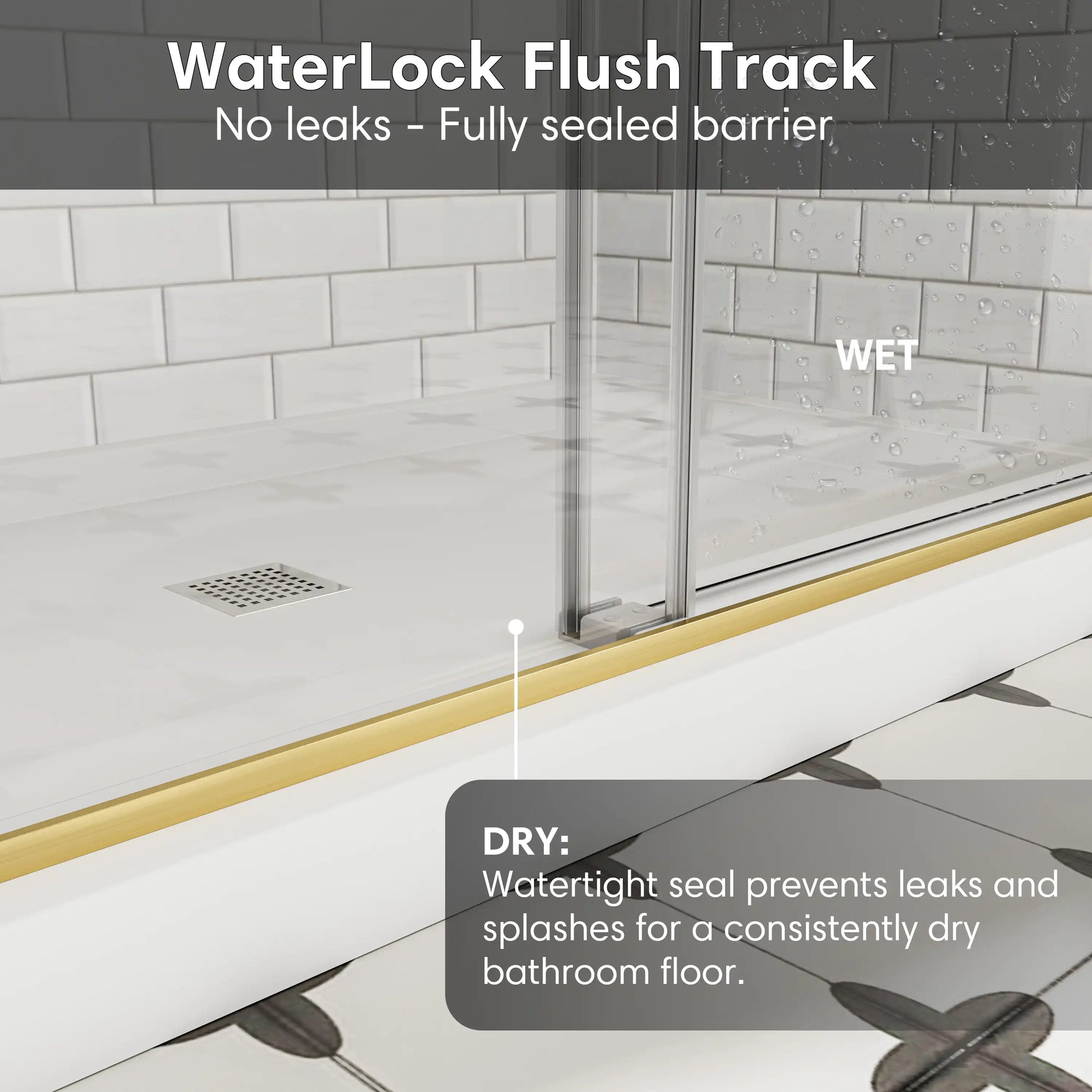

5. WATERPROOFING SYSTEM


  • Bottom seal prevents water from leaking outside shower zone
  • D-type rubber strip blocks leaks and absorbs sliding impact
  • Integrated water dam ensures external floor stays dry

6. LOGISTICS & SUPPORT


  • Ships in 5–7 business days
  • Upgraded protective packaging with corner guards
  • FREE replacement for shipping breakage or verified damage
  • Optional $19.9 protection plan covers size issues, install errors, or glass failure
  • Limited lifetime warranty — you're fully covered
  • 98% customer service satisfaction rate
Read More >

Measure the doorways leading up to your bathroom to ensure you can carry the shower door through your house without damaging the glass. Make sure there is room to turn your shower door if necessary.

What You Will Need

  • At least two people
  • Tape measure
  • Pen & paper
  • Level

Step 1: Make a Sketch of Your Shower


With your pen and paper, sketch a small diagram of your shower. Use this visual reference to label your measurements.


Take each measurement twice, and if your numbers differ, go with the larger one. Always round to the nearest 1/16ʺ for accuracy. If you opt for a custom shower door, knowing precisely how to measure for a glass shower door is even more essential.

Step 2: Measure the Width


Using your tape measure, measure the width of your shower from one side of the wall to the other. Measure the width in three spots – along the base, middle, and top. See Image 1.

If you have a neo-angle shower, measure the width in sections along the base of the shower pan. See Image 2.

Step 3: Check if the Walls Are Plumb


Older homes or showers may not have walls that are perfectly straight. If your wall is plumb, meaning straight up and down, you should have a worry-free shower door installation. If your walls are not plumb, you should seek the help of a professional when installing your shower door. To check if your shower walls are plumb, place your level flat against each shower wall. Look at the bubble on the level and see if it is centered between the two indication lines. If the bubble is centered, the wall is plumb. If the bubble is not centered, angle the level away from the wall until it is. Holding the level in this position, mark the distance between the wall and the level on your measurement sheet. Share these measurements with the professional who will be installing your shower door. Do this at the bottom and top of each wall to ensure they are plumb all the way up. See Image 3 below.

Step 4: Measure the Height


Measure the distance from the base of your shower to its top. If your shower door will rest on a threshold, have your measurement begin at the top of this "base.” See Image 4. If your desired shower door size is shorter than your shower's overall height, only measure up to this point. See Image 5.

Step 5: Measure the Opening


If your new shower door will be the same style as your current door, measure the width of the current door and use that measurement as a reference. If your new door will sit over a section of the threshold that you have previously measured, use this width. See Image 6. If your shower door will be smaller than your threshold's width, measure your desired width. An example would be a fixed shower door that only covers three-fourths of your threshold's overall width. See Image 7.

If your new door will swing outward (hinged, pivot, or folding doors), take your tape measure and make it the desired width of your shower door, then place one end of the tape measure where the door's hinge would be. Holding it in place, pull the tape measure in a semicircular motion. This will determine if there is sufficient room for it to open without hitting a wall, door, or vanity. See Image 8.

Shipping Made Easy

We're happy to offer free shipping on all orders within the continental United States—no surprises, just straightforward service.

  • Small packages usually arrive within 3–7 business days (plus 1–3 days processing).
  • Larger items take a bit longer, typically 5–10 business days to reach you.

If anything arrives damaged, please let us know within 72 hours so we can make it right:

Call us at +1 860-397-3699

Or email sales@acedecorbath.com

Hassle-Free Returns

We want you to feel confident shopping with us, so we offer a 30-day money-back guarantee from the delivery date for products that arrive with quality issues or remain unopened in their original packaging.

For health and safety reasons, we can't accept returns or refunds if the item has been opened, installed, or used—unless there's a confirmed defect.

If you need to start a return, just reach out to our Customer Support team at sales@acedecorbath.com. We'll help you check eligibility and guide you through the process.

Please note, returns won't be accepted if:

  1. The product has been opened, installed, or used without any quality concerns
  2. Original parts or packaging are missing
  3. We aren't contacted within 30 days of delivery

Your satisfaction is our priority—thank you for choosing Ace Decor!

At Ace Decor, we stand behind the quality of our products. Your purchase is backed by our Limited Warranty, covering manufacturing defects in materials and workmanship under normal residential use.

  • Glass Panels – Lifetime Limited Warranty
  • Hardware Components – Lifetime Limited Warranty
  • Plastic Seals & Vinyl Parts – 1-Year Limited Warranty

For full warranty terms, including conditions for installation, care guidelines, and coverage details, please click here to view our full Warranty Policy.

Rest assured, with Ace Decor, you're choosing long-term performance, style, and peace of mind.

Customer Reviews

Based on 204 reviews
89%
(181)
7%
(15)
4%
(8)
0%
(0)
0%
(0)
V
Vanessa Tate
Overall it's OK

It leaked after I installed it. I spent a day trying to fix it. I contacted customer service and their engineer helped me solve the problem. I still like the door very much. It's just that the installation process was a bit long, but the service was really great.

R
Ryan Chandler

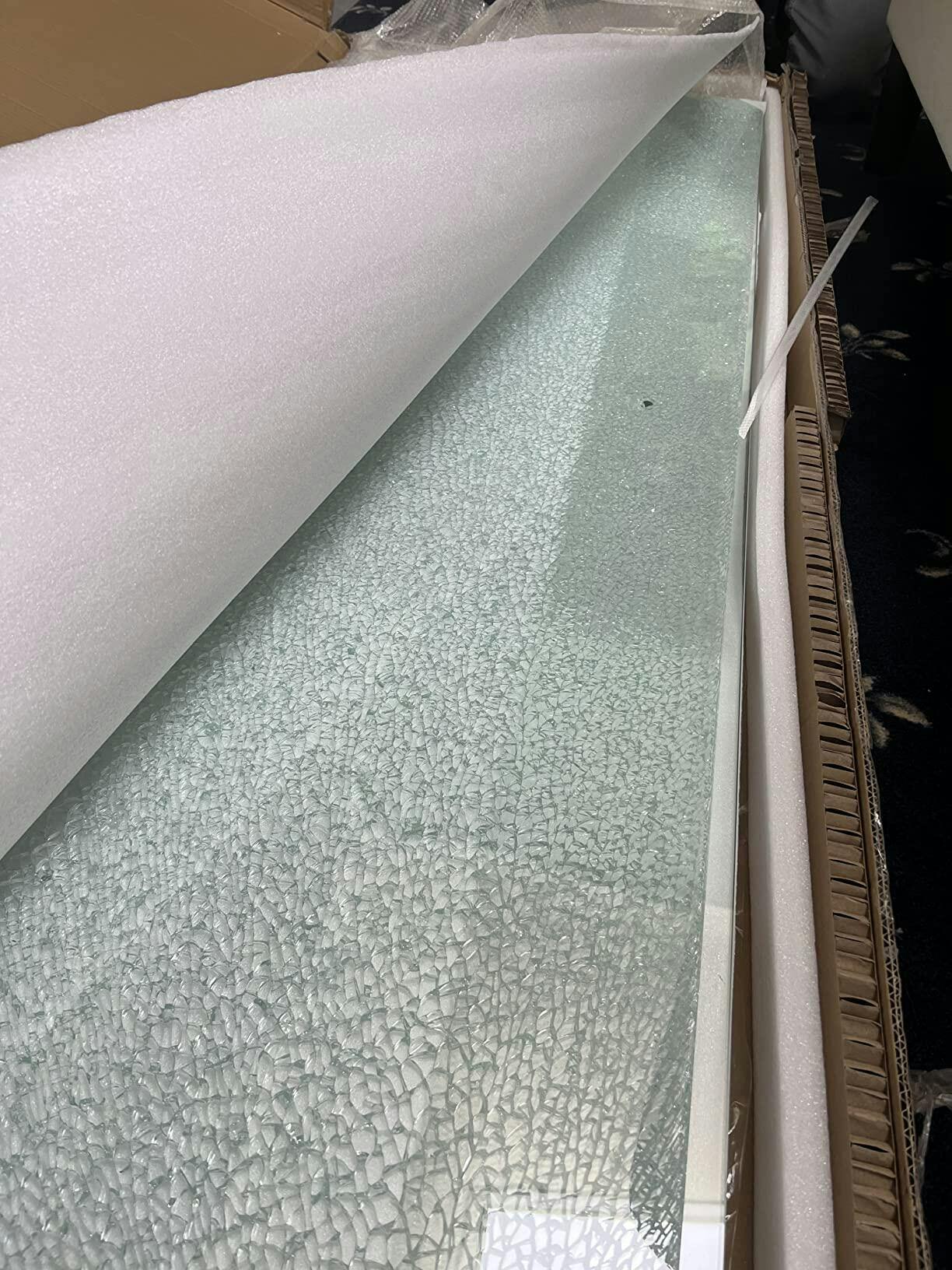

Broken glass

One side of the door was completely damaged. I contacted customer service, and they responded quickly. They sent me a new one very quickly, which was great.

A
Ashley Monroe
Uh Oh

I was a little nervous putting this in. Measuring and lining up the location of the guide rail bracket and the bottom guide block have to be just right. I have kind of a fiberglass shower enclosure and there were no studs to screw into which made it difficult as well. The upper guid rail which the doors hang on as well as the rail brackets are well made and heavy, which they have to be to hold the heavy glass doors. So keep that in mind and make sure you get the rail brackets screwed in to a good sold support. All in all I’m very pleased with these doors, more importantly my wife is too. Good luck.

E
Erin Matthews
Easy to install

Looks great Very easy to install I’m not a pro by any means and I did it myself I would recommend

L
Logan Wheeler
Very impressive

I love the new double sliding shower door that my son-in-law installed during a recent visit from out of town. He has good taste and is knowledgeable about these things, so I'm sure it's high quality, worth the money, and will turn out great.
