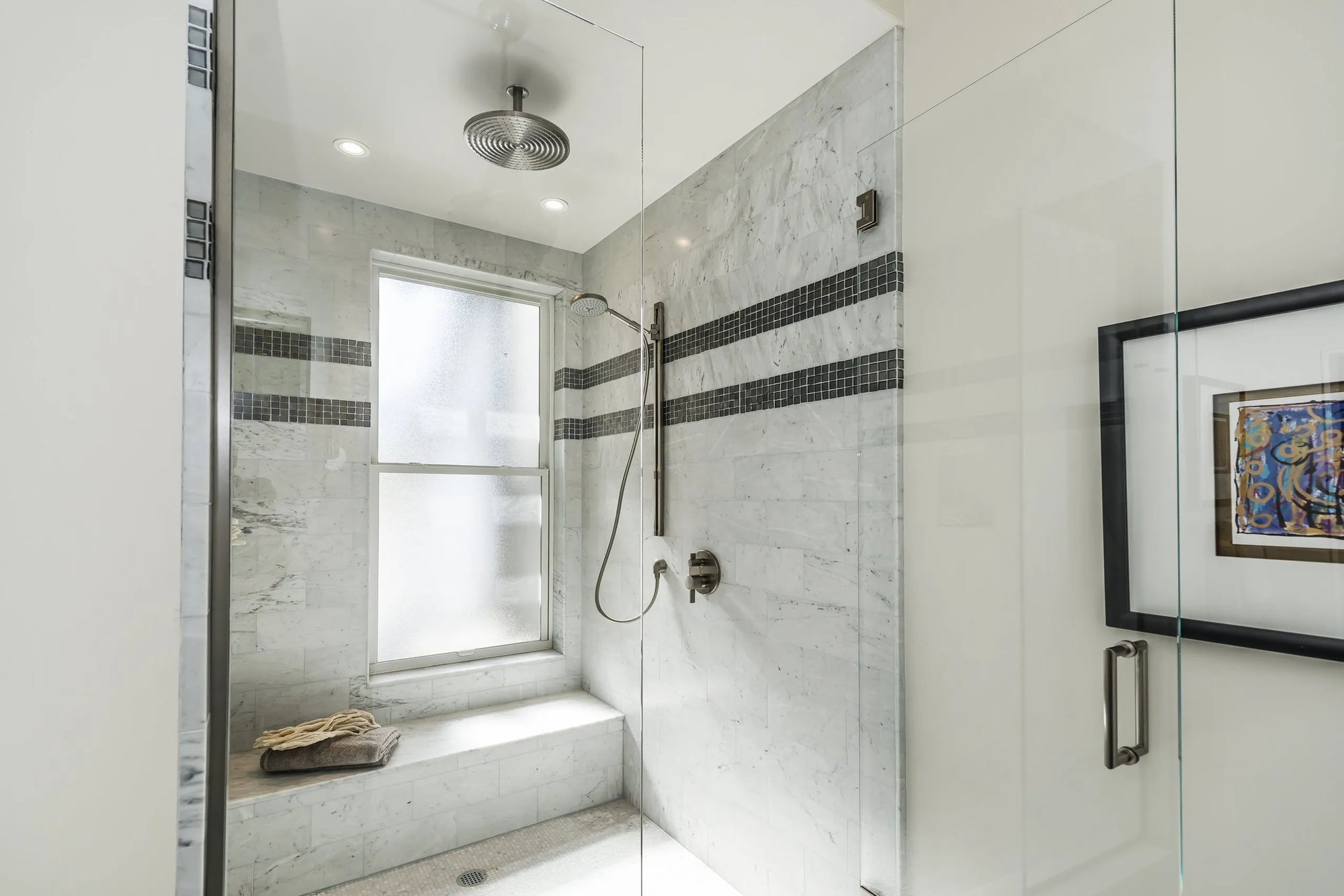

Handheld shower & rainfall shower head in luxury glass shower with rain head, black mosaic accent tiles, built-in bench.

Shower Head Height Guide: Standard Measurements & Best Practices

Posted by MendozaJavier on

Introduction

When most people hear standard shower head height, they picture a fixed wall-mounted head about 80 inches (203 cm) from the floor. This is the most common benchmark, but not the only one. Different types—like handheld showers, rain showers, and body sprays—each have their own ideal shower head height. Factors such as user height, ADA-compliant shower head height requirements, and ceiling clearance also play a role.

In this shower design guide, we’ll cover the recommended shower head height in inches and cm, how to adjust for tall and short users, and provide a simple shower head height chart. By the end, you’ll know how to choose the best placement for comfort, accessibility, and long-term bathroom remodeling success.



Table of Contents:


1) What Does “Standard Shower Head Height” Mean?

adjustable black shower head height with slide bar

The standard shower head height is 80 inches (203 cm), often used as a benchmark in bathroom remodeling and plumbing installation. This measurement is not a code, but an industry norm widely followed in North America.



For most fixed wall-mounted shower heads, that norm is around 80 inches from the finished floor to the center of the shower head outlet. This height suits the average adult male in North America, allowing the water stream to clear the head and shoulders while keeping spray inside the enclosure.



That said, the 80-inch measurement is a baseline, not a rule. The best shower head height ultimately depends on several factors: the type of shower head you choose, the heights of the people using it, and the overall layout of the bathroom. Even a small adjustment like a few inches up or down can make a big difference in comfort and usability.



2) Fixed Wall-Mount Shower Head Height Recommendations



As noted earlier, the typical height for a wall-mounted shower head is around 80 inches (203 cm). However, this isn’t a one-size-fits-all measurement.



  • If the tallest person in your household is over 6'2" (188 cm), raising the shower head slightly to 82–84 inches (208–213 cm) can prevent them from having to stoop under the spray.

  • For households with tall users (6’2” / 188 cm or taller), the best shower head height is around 82–84 inches. For shorter users under 5’7” (170 cm), lowering the shower head to 76–78 inches provides more comfort and prevents overspray.



In the end, the “standard” should be seen as a guideline, not a fixed rule. The ideal height is the one that best serves the people actually using the bathroom.



3) Handheld Shower Head Height & Slide Bar Adjustments

rose gold shower system with shower head height adjustment

A handheld shower head height with slide bar typically ranges from 48 to 78 inches (122–198 cm). According to ADA guidelines, the dock must allow the shower head to be used at or below 48 inches for accessibility.



From an accessibility standpoint, ADA guidelines specify that the operable parts of a handheld shower must be no higher than 48 inches (122 cm) from the floor. This doesn’t limit the slide bar itself from extending higher, but it does mean the bracket should allow the shower head to be positioned at that compliant height when needed.



Finally, using a hose length of at least 59 inches (150 cm) ensures that seated bathers or those using a shower bench can rinse comfortably without straining or overreaching.




4) Rain Shower Head Height (Ceiling-Mount Guide)



Ceiling-mounted rain heads deliver a spa-like, straight-down flow, so placement matters for both comfort and coverage. For comfort, the rain shower head height from ceiling should leave about 10–12 inches of clearance above the tallest user’s head. In most homes, this equals 84–90 inches from the floor.



For user clearance, aim for roughly 10–12 inches (25–30 cm) above the tallest regular user’s head so the sheet of water can form and spread before it reaches the body. Less than ~6 inches often feels “in your face,” while mounting far above ~90 inches can weaken coverage, especially on 1.8 gpm low-flow heads.




5) Body Spray & Shower Jet Height Placement

luxury square shower head height with handheld shower

Body jets or sprays, mounted on the shower wall, are all about targeted coverage. They’re usually installed in vertical arrays to hit multiple zones of the body:



Shower Type Recommended Height Notes
Standard Wall-Mount 80 inches (203 cm) Works for most bathrooms
Handheld 72–78 inches (183–198 cm) Adjustable with slide bar
Rain Shower 84–96 inches (213–244 cm) Higher placement for overhead spray
ADA Compliance 48–54 inches (122–137 cm) Easy reach for accessibility



For showers with a built-in bench, it’s useful to add a jet at 30–34 in (76–86 cm) to provide coverage to the lower back when seated.



Some designers prefer to stagger jets for varied spray angles, but most installations keep them in a straight vertical line for symmetry and a cleaner look. Whatever the layout, always ensure jets are angled away from the shower door or enclosure glass to prevent overspray, leaks, and water spots.




6) Shower Controls & Mixing Valve Height



The shower mixing valve height is typically 38–48 inches from the floor. For ADA compliance, shower control height must be no higher than 48 inches, easy to reach without bending or stretching.



While most fixed-and-handheld combinations place the controls directly beneath the main shower head for plumbing convenience, the ideal layout positions them where the user can turn on the water without standing under the spray, helping to avoid an unexpected blast of cold water.



7) Adjusting Shower Head Height for Different Heights

modern gold shower head height with handheld sprayer

Getting the height right for everyone in the household is easier if you do a quick calibration before installation.



1. Measure: Start by noting the tallest and shortest users. For the fixed head, aim for a position about 3–6 inches above the tallest person’s head. Then check the clearance for the shortest user. Ideally, the head should still be no more than 12 inches above them. If meeting both conditions isn’t possible, aim for a midpoint height.



2. Mark: Use painter’s tape or a washable marker to mark several possible installation heights on the shower wall, common options might be 78", 80", and 82". If you’re adding a slide bar or handheld dock, mark those points as well.



3. Test: Before drilling, simulate the spray position. You can use a temporary bracket, an adjustable shower arm, or simply have someone hold the head at each mark. Have different users stand in place to check spray angle, coverage, and whether water escapes the enclosure.



4. Adjust: Based on everyone’s feedback, fine-tune the target height.



Following these steps ensures the final height feels comfortable and practical for every user before you commit to permanent installation.



8) ADA Shower Head Height & Universal Design Standards

Universal design aims to make spaces usable by as many people as possible without adaptation. ADA standards offer concrete numbers to guide you:

  • Handheld showers must be usable from a seated position, with operable parts at ≤48 inches.

  • The hose should be at least 59 inches long to allow easy movement.

  • Fixed shower heads can be placed higher but should be paired with a handheld option to meet accessibility needs.

  • Controls must be within 48 inches of the floor, operable with minimal force, and placed where they won’t conflict with grab bars.

Even if ADA compliance isn’t legally required for your project, adopting these guidelines can make your shower more versatile and future-proof.

ADA guideline for shower heads


Conclusion

Choosing the right shower head height depends on your bathroom layout, shower type, and user preferences. By following the standard measurements and adjusting for individual needs, you’ll ensure a comfortable and practical showering experience.



FAQ

Q1. Is 80 inches always correct for a standard shower head height?

A: No. While 80 inches is common for fixed wall-mounted heads, the ideal height depends on user height, shower type, and ceiling clearance. Taller users may prefer 82–84 inches, while shorter users might find 76–78 inches more comfortable.



Q2. What’s the ideal height for a handheld shower dock on a slide bar?

A: The dock should allow adjustment between about 48 inches and 78 inches from the floor. For ADA accessibility, it must be able to hold the shower head at or below 48 inches.



Q3. How high should a ceiling-mounted rain shower be?

A: Position the spray face 3–6 inches above the tallest user’s head. In most homes, that works out to 84–90 inches from the floor, depending on ceiling height.



Q4. Where should body jets be placed for the best coverage?

A: Lower jets: 18–24 inches; mid jets: 36–40 inches; upper jets: 48–52 inches. For a bench, add one at 30–34 inches to target the lower back.



Q5. What ADA rules actually affect shower head and control heights?

A: Operable parts must be within 48 inches of the floor, usable with one hand and minimal force. Handheld showers require a hose at least 59 inches long, and fixed heads should be paired with a reachable option.
